One Reflow Delamination Mechanism Can Produce Different Device Failures
Two molded semiconductor devices failed after accelerated stress testing and exhibited internal delamination in acoustic images.
Acoustic imaging correlationProgressive microsectioningOptical microscopySEMFailed-to-control comparison
What the evidence preview establishes

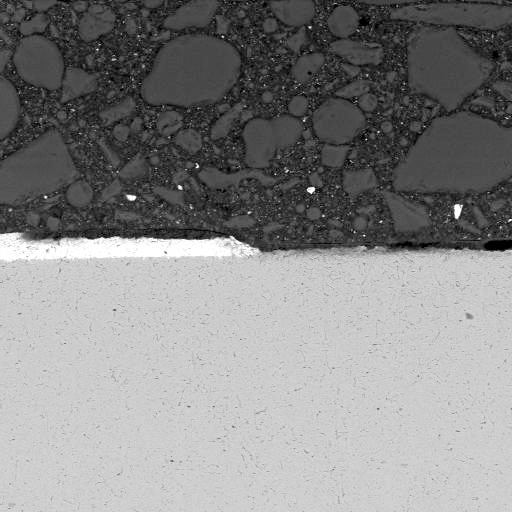

Reflow-related molding-compound delamination most likely produced a die crack in one device and enabled bond-pad corrosion in the other.
Why this case matters
Correlate acoustic indications with the eventual physical failure site. The same moisture-and-reflow delamination event can create mechanical die fracture in one device and a corrosion pathway at bond pads in another.
Full evidence reserved for MEMBER and STOREThe complete case includes the evidence sequence, four interpreted figures, alternative explanations, limitations, and practical application guidance.
