Particle Analysis Service

Particle count and size analysis is important in a wide range of industries including food processing, lubrication, cutting and grinding, to name a few. For example - shown below is a 100X SEM image of copper and alumium oxide particles. By changing contrast parameters an image that shows only the bright copper particles is created. This image is ready for automatic particle counting and size determination.

particle analysis

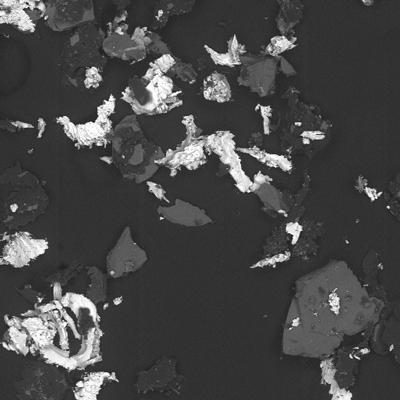

SEM image [100X base magnification] at 15 KeV of copper particles (bright contrast) and aluminum oxide particles (intermediate contrast) on clean carbon tape (dark background).


particle analysis

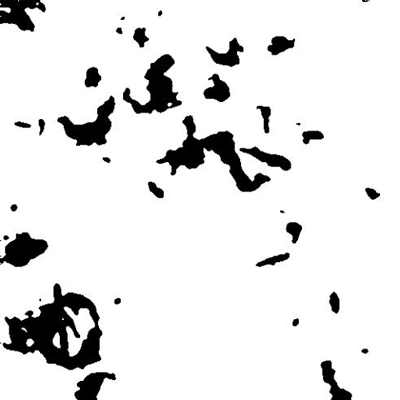

Binary image of copper particles created from SEM image above.


particle analysis

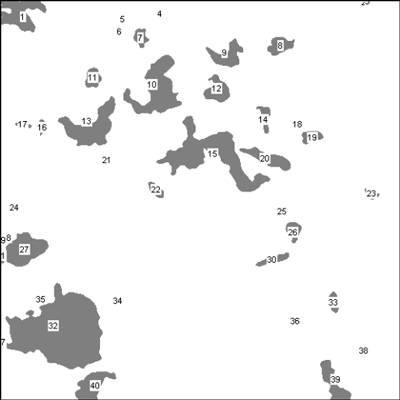

Labeled copper particles after automatic counting by the image analysis software.
